Aged hematopoiesis

[1]:

import torch.nn as nn
import scfocus
import scanpy as sc
import pandas as pd
import numpy as np
import joblib
import torch
import matplotlib.pyplot as plt
import seaborn as sns

[37]:

cm = 1/2.54
sc.set_figure_params(figsize=(5*cm,5*cm),dpi=300,fontsize=10,frameon=False)

[6]:

adata = sc.read_10x_mtx('../Downloads/GSE255019/', prefix='GSE255019_')

[10]:

meta = pd.read_csv('../Downloads/GSE255019/GSE255019_meta_aging_final_annotation.csv.gz', header=0,index_col=0)

[14]:

adata = adata[meta.index,:]

[15]:

adata.obs = meta

[ ]:

sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)
sc.pp.highly_variable_genes(adata)
sc.pp.pca(adata, use_highly_variable=True)

[24]:

sc.pp.neighbors(adata)
sc.tl.umap(adata)

[72]:

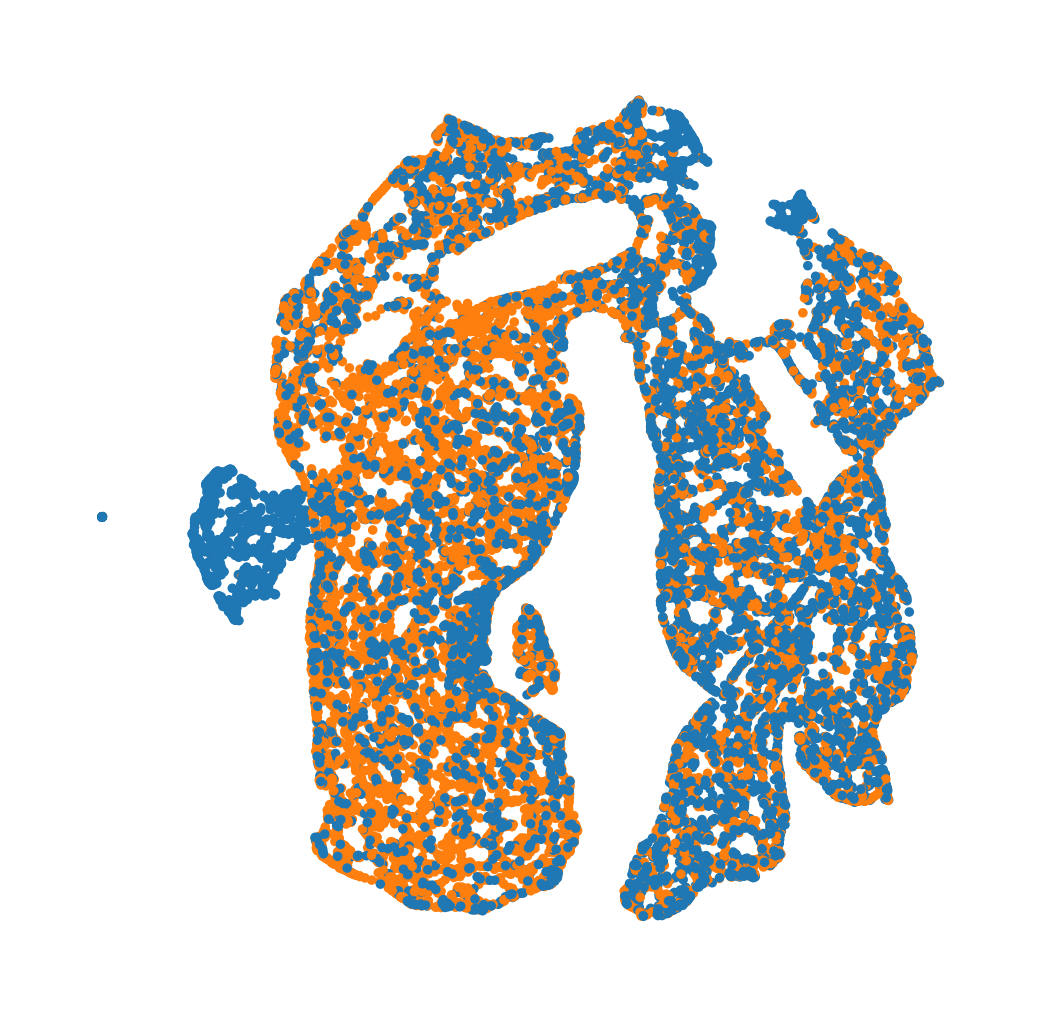

sc.pl.umap(adata, color='Age',title='',legend_loc=None)

[26]:

umap = adata.obsm['X_umap']

[91]:

umap = adata.obsm['X_umap']

pd.DataFrame(umap).to_csv('Hemato.csv')

[ ]:

focus = scfocus.focus(umap, n=6, max_steps=3, pct_samples=.01).meta_focusing(5)

[58]:

focus.merge_fp2()

mfp = focus.mfp[0]

for i in range(mfp.shape[1]):

    adata.obs[f'f{i}'] = mfp[:, i]

[ ]:

sc.pl.umap(adata, color=[f'f{i}' for i in range(mfp.shape[1])], cmap='viridis')

[ ]:

batches = adata.obs['Age'].cat.categories

lut = dict(zip(batches, adata.uns['Age_colors']))

with sns.axes_style('ticks'):
    fig = plt.figure(figsize=(1.5,2))
    sns.barplot(y=np.arange(2),x=np.unique(adata.obs['Age'], return_counts=True)[1],orient='horizonal',palette=[lut[c] for c in batches],zorder=0)
    ax = plt.gca()
    ax.set_yticklabels(batches, fontdict={'ha':'left'},zorder=10)
    ax.tick_params(axis='y',pad=-4,zorder=10,left=False)
    ax.spines[['right','top']].set_visible(False)

[66]:

df = pd.DataFrame(mfp, index=adata.obs_names)

df['label'] = adata.obs['Age']

df1 = df.groupby('label').mean()

df1 = df1[np.argsort(np.argmax(df1, axis=0))]

[61]:

from sklearn.preprocessing import StandardScaler

df1 = pd.DataFrame(StandardScaler().fit_transform(df1.values), columns=df1.columns,index=df1.index)

[74]:

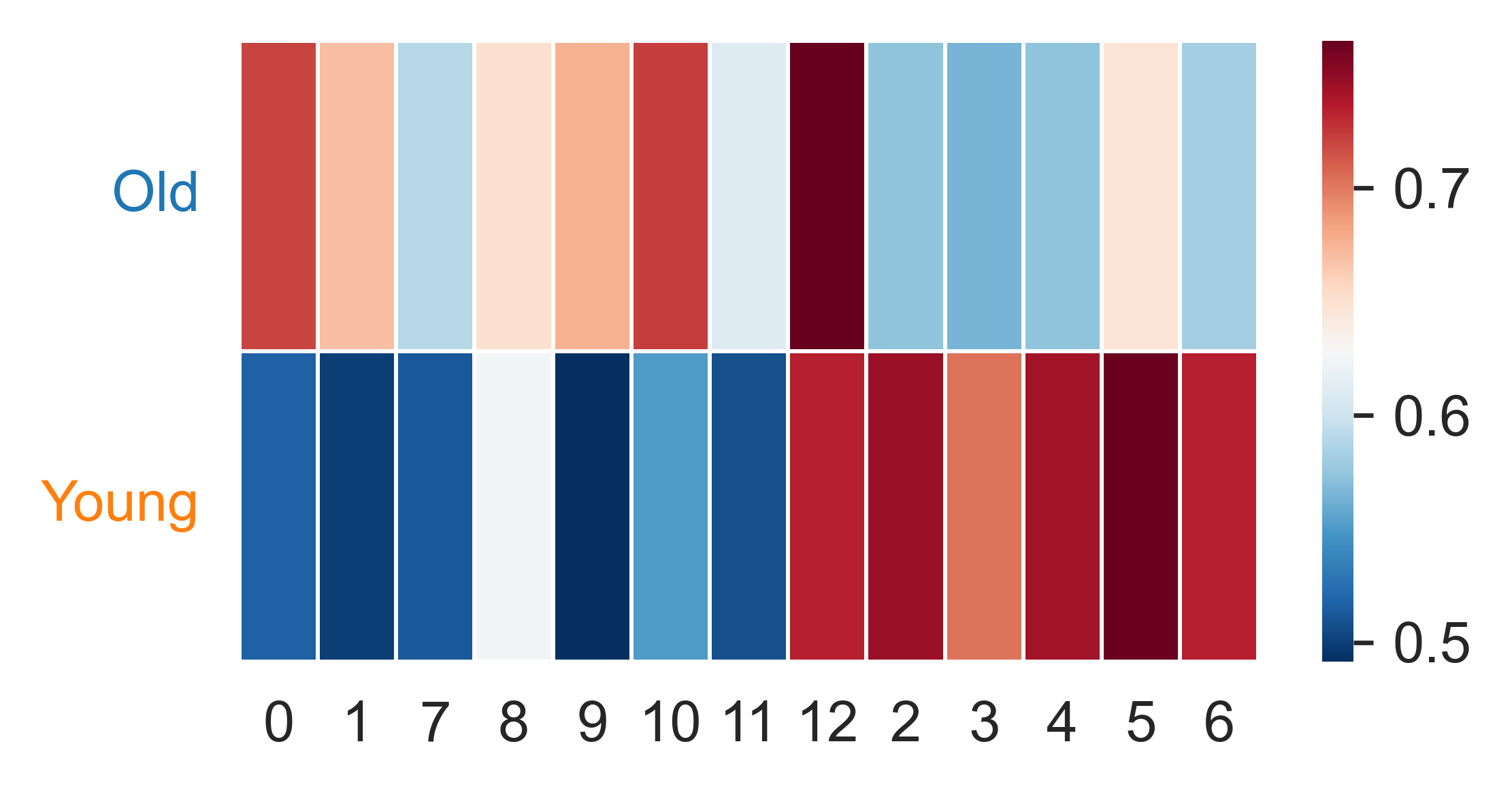

with sns.axes_style('white'):
    fig = plt.figure(figsize=(4,2))
    sns.heatmap(df1, xticklabels=True, lw=.5, cmap='RdBu_r')
    ax = plt.gca()

ax.set_ylabel('')
for tick in ax.get_xticklabels():
    tick.set_rotation(0)

for tick in ax.get_yticklabels():
    tick.set_color(lut[tick.get_text()])
    tick.set_rotation(0)

../_images/notebook_HematoAging_18_0.png

[70]:

adata.obsm['X_focus'] = adata.obs[[f'f{i}' for i in range(mfp.shape[1])]].values

sc.pp.neighbors(adata, use_rep='X_focus')

sc.tl.umap(adata, min_dist=.2)

[71]:

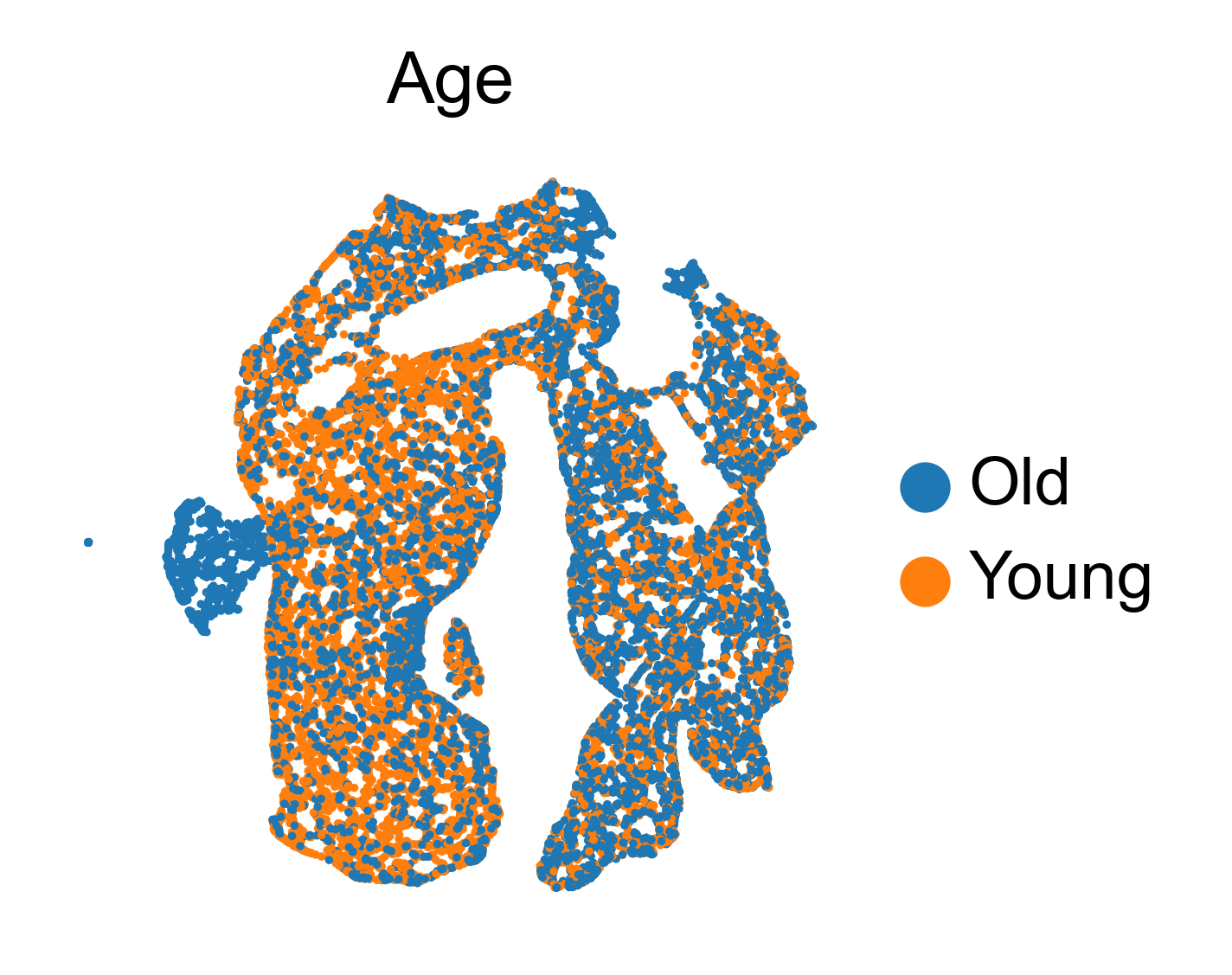

sc.pl.umap(adata, color='Age')

../_images/notebook_HematoAging_20_0.png

[76]:

adata.obs['F_1'] = adata.obs[['f0','f1','f7','f8','f9','f10','f11','f12']].mean(axis=1)

adata.obs['F_2'] = adata.obs[['f5','f2','f3','f6','f4']].mean(axis=1)

[77]:

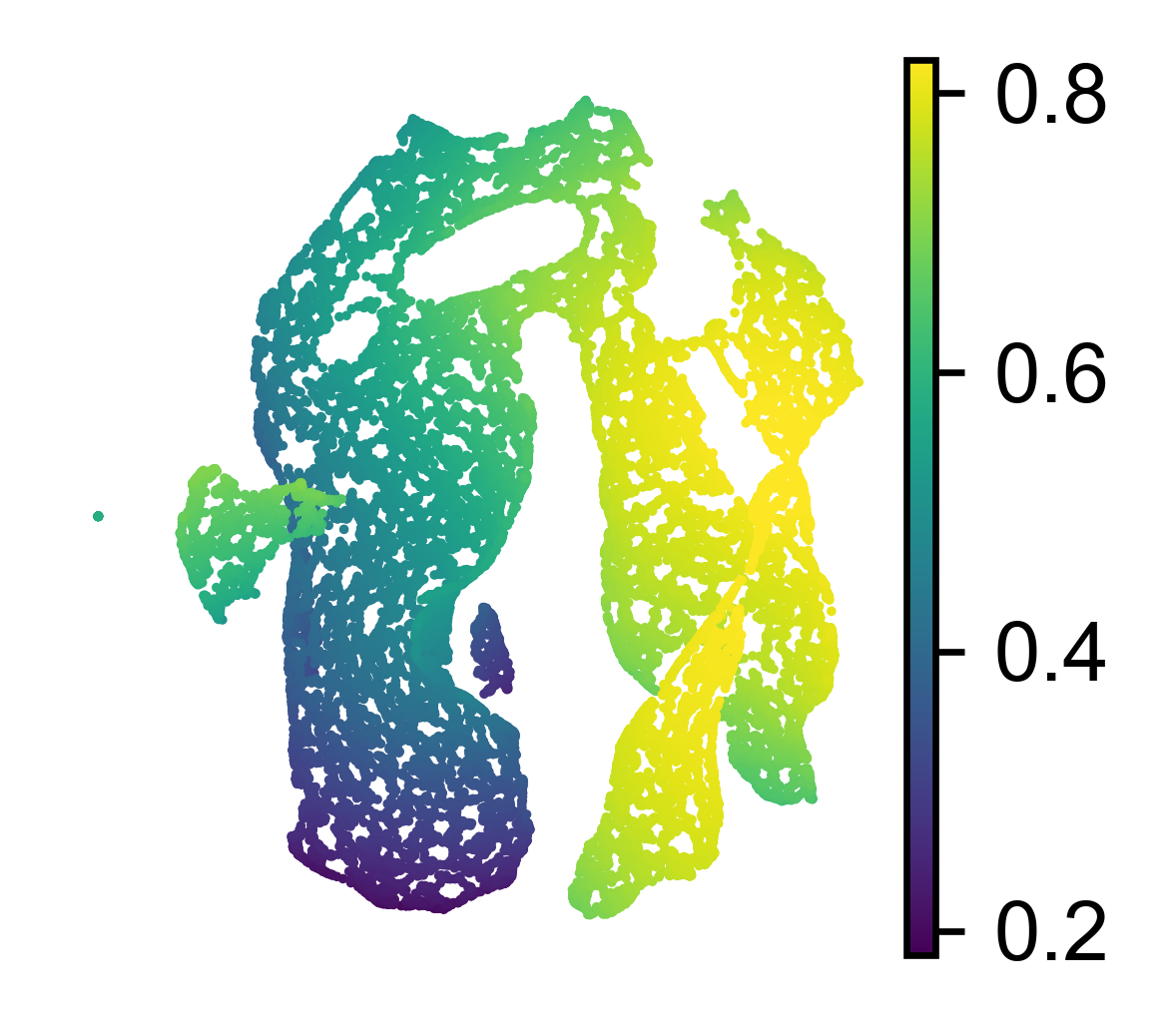

sc.pl.umap(adata, color='F_1', title='', show=False)

[77]:

<Axes: xlabel='UMAP1', ylabel='UMAP2'>

../_images/notebook_HematoAging_22_1.png

[78]:

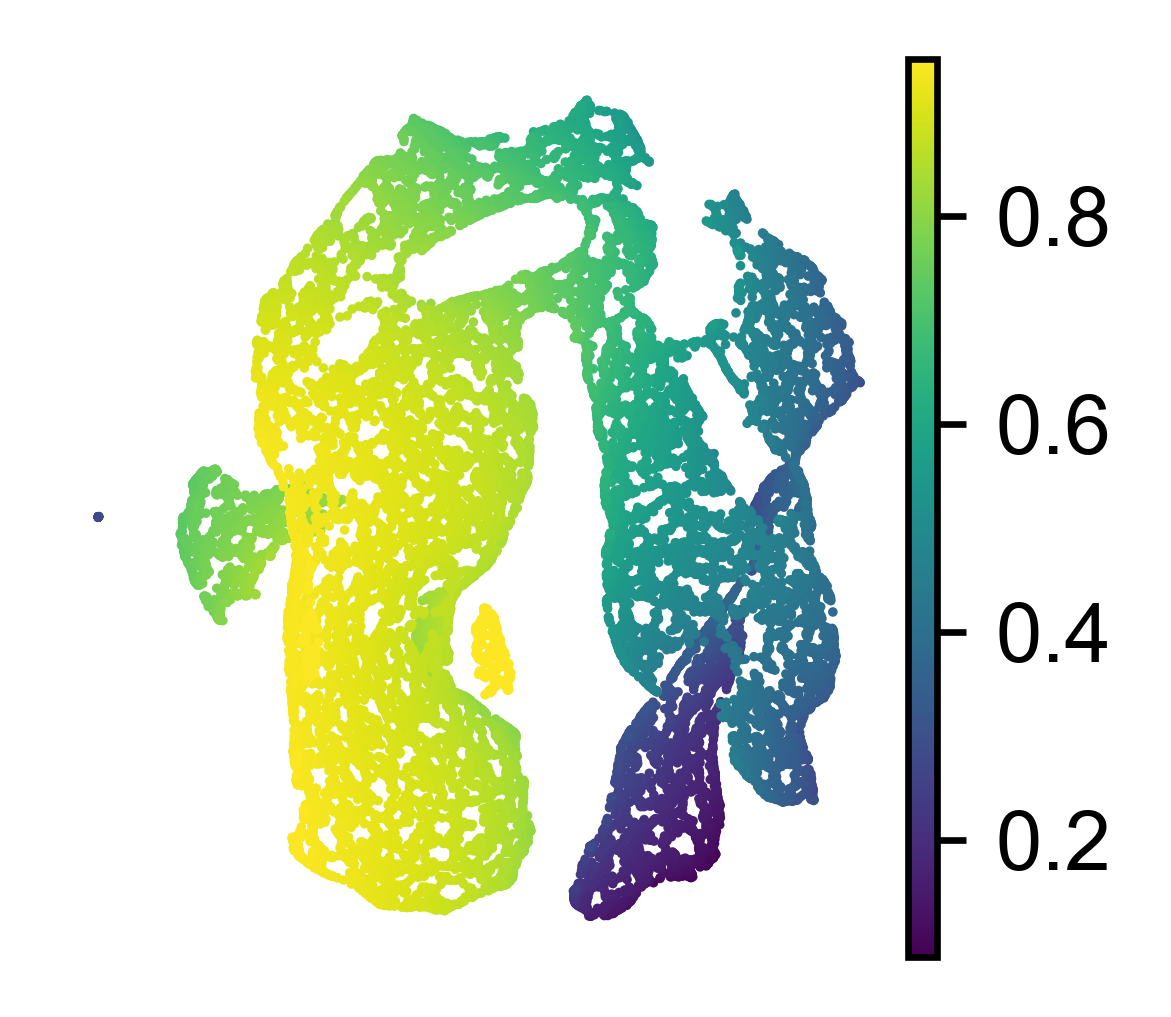

sc.pl.umap(adata, color='F_2', title='', show=False)

[78]:

<Axes: xlabel='UMAP1', ylabel='UMAP2'>

../_images/notebook_HematoAging_23_1.png

[79]:

exp = adata[:,adata.var['highly_variable']].to_df()

exp['F_1'] = adata.obs['F_1']
exp['F_2'] = adata.obs['F_2']

corr = np.corrcoef(exp.values.T)

corr = pd.DataFrame(corr, index=exp.columns, columns=exp.columns)

[80]:

idx1 = corr['F_1'].sort_values(ascending=False).index

idx2 = corr['F_2'].sort_values(ascending=False).index

pd.DataFrame(idx1[1:51]).to_csv('Hemato_gs1.csv')

pd.DataFrame(idx2[1:51]).to_csv('Hemato_gs2.csv')

[81]:

idx1[:16]

[81]:

Index(['F_1', 'H2afy', 'Psmb8', 'Sh3bgrl3', 'Ptpn18', 'Cmtm7', 'Arpc1b',
       'Fxyd5', 'Arhgdib', 'Coro1a', 'Gmfg', 'Pkm', 'Ramp1', 'Alox5ap',
       'Plac8', 'Tnfaip8'],
      dtype='object')

[82]:

idx2[:16]

[82]:

Index(['F_2', 'Car2', 'Blvrb', 'Car1', 'Klf1', 'Mrpl52', 'Mns1', 'Abcb4',
       'Gstm5', 'Casp3', 'Vamp5', 'Slc25a21', 'Aqp1', 'Ermap', 'Gata1',
       'Nfia'],
      dtype='object')

[83]:

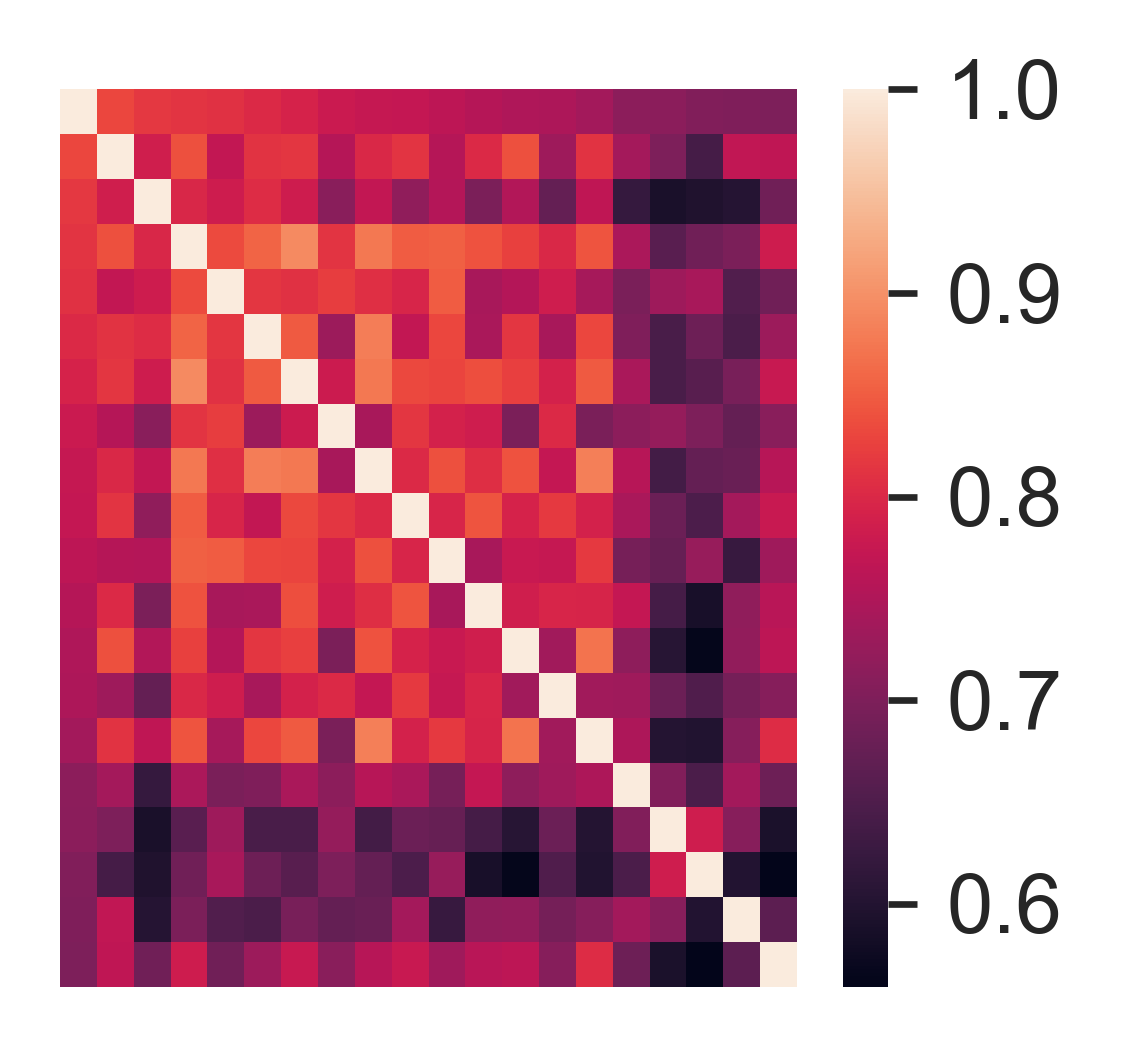

with sns.axes_style('white'):
    sns.heatmap(corr.loc[idx1,idx1].iloc[:20,:20])
    ax = plt.gca()
    ax.tick_params(labelleft=False,labelbottom=False)

../_images/notebook_HematoAging_28_0.png

[84]:

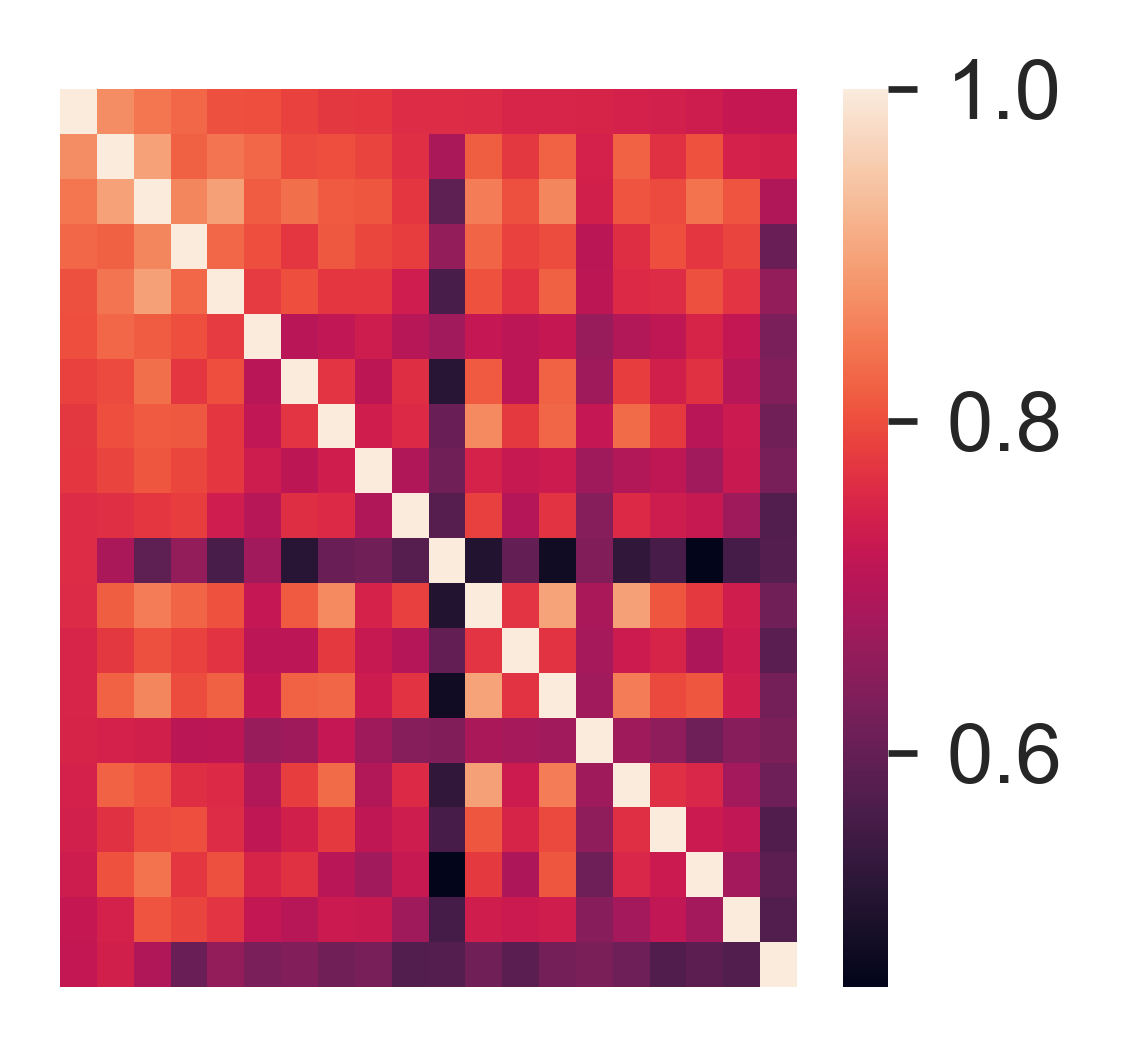

with sns.axes_style('white'):
    sns.heatmap(corr.loc[idx2,idx2].iloc[:20,:20])
    ax = plt.gca()
    ax.tick_params(labelleft=False,labelbottom=False)

../_images/notebook_HematoAging_29_0.png

[85]:

adata.obs['F_1_exp'] = adata[:,['H2afy', 'Psmb8', 'Sh3bgrl3', 'Ptpn18', 'Cmtm7']].to_df().mean(axis=1)

adata.obs['F_2_exp'] = adata[:,['Car2', 'Blvrb', 'Car1', 'Klf1', 'Mrpl52']].to_df().mean(axis=1)

[86]:

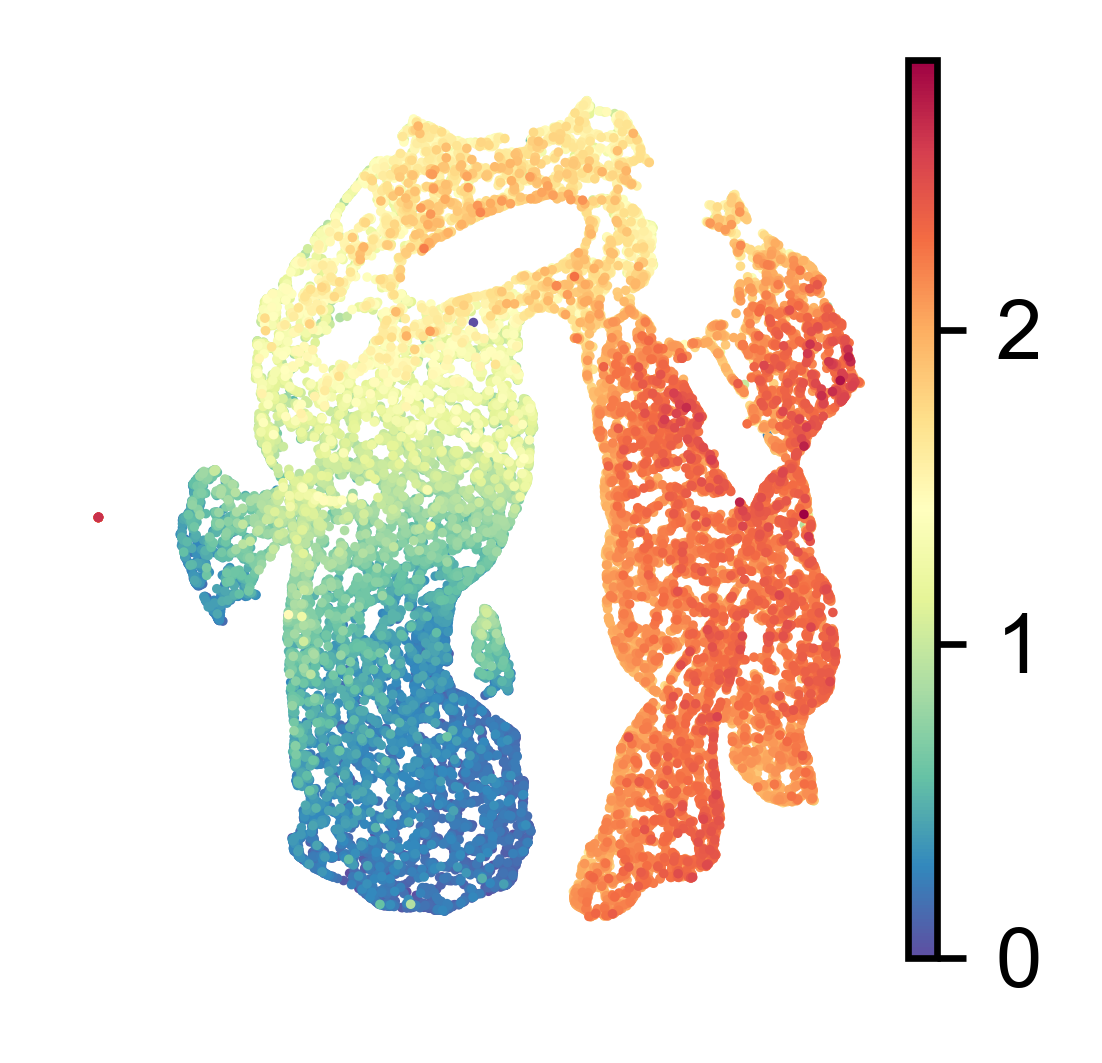

sc.pl.umap(adata, color='F_1_exp',title='', cmap='Spectral_r')

../_images/notebook_HematoAging_31_0.png

[87]:

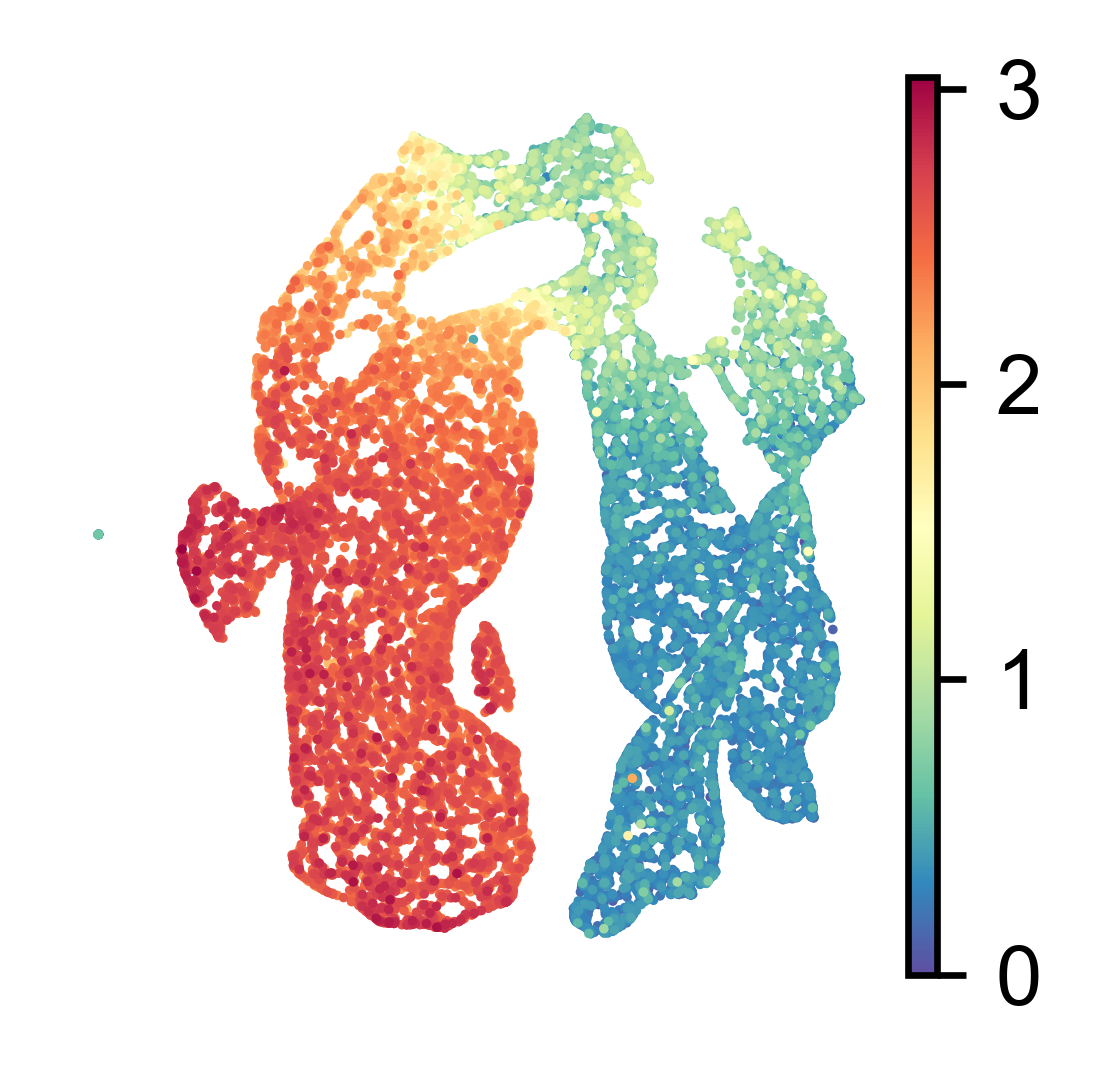

sc.pl.umap(adata, color='F_2_exp',title='', cmap='Spectral_r')

../_images/notebook_HematoAging_32_0.png

[92]:

joblib.dump(adata, 'Hemato')

[92]:

['Hemato']

[93]:

joblib.dump(focus, 'Hemato_focus')

[93]:

['Hemato_focus']
